Function/Performance
RESPONSIVE STEERING
Equipped with a rugged steer axle for durability, and hydrostatic steering for simple and precise maneuverability, each EcoMaxx truck is designed to easily stand up to even the toughest jobs.

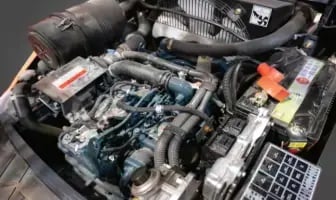

EASE OF MAINTENANCE
Designed for durability and equipped with a straightforward oil and filter change system, EcoMaxx forklifts are built for simplified maintenance – making routine inspections and repairs more efficient.
OPERATOR PRESENCE SYSTEM
Integrated into the ergonomic seat, the Operator Presence System locks out lift and travel functions and disengages the transmission should the operator leave the seat while the forklift is in use.
WIDE VIEW MAST
Intelligent design and effective chain / hose placement provides better forward visibility. With a clearer view of the forks, operators are more efficient, accurate, and safe in load handling.
INTEGRATED SAFETY FEATURES
EASILY ACCESSIBLE CONTROLS
RUGGED POWER TRAIN
SOLID OVERHEAD GUARD
SPECIFICATIONS
MODEL
ECO-FG18
ECO-FG20
ECO-FG25
ECO-FG30
ECO-FG35
Power
2
LPG
LPG
LPG
LPG
LPG
Rated Capacity
3
LBS
3500
4000
5000
6000
7000
Load Centre
4
IN
24
24
24
24
24
Mast Tilt Angle
F/R
7
Deg
6/12
6/12
6/12
6/12
6/12
Overhang
Wheel Centre to Fork Face
8
IN
16.7
18.5
18.5
18.7
19.3
Clearance
Bottom of Mast
9
IN
3.9
4.7
4.7
4.7
4.7
Length
Rear of Face of Carriage
10
IN
90
96.9
99.6
105.1
106.3
Overall Width
11
IN
42.1
45.3
45.3
48.2
48.2
Overhead Guard Height
14
IN
83.0
84.0
84.0
85.0
85.0
Outside Turning Radius
15
IN
81.1
85.4
88.2
94.5
96.3
Minimum Intersecting Aisle
16
IN
73.4
75.6
79.1
83.1
87.9
Travel Speed
Laden
17
m/hr
9.0
11.8
11.8
11.8
11.8
Travel Speed
Laden
18
in/s
18.1
19.3
19.3
17.3
16.1
Maximum Gradeability
19
%
20
20
20
20
20
Front Tire
Pneumatic
20
6.50-10-10PR
7.00-12-12PR
7.00-12-12PR
28x9-15-12PR
28x9-15*
Rear Tire
Pneumatic
21
5.0-8-10 PR
6.00-9-10PR
6.00-9-10PR
6.50-10-10PR
6.50-10-10PR
Wheelbase
22
IN
55.1
63.0
63.0
66.9
66.9
Engine Type / Model
25
WG2503
WG2503
WG2503
WG2503
WG2503
Engine Manufracturer
26
KUBOTA
KUBOTA
KUBOTA
KUBOTA
KUBOTA
Attachment Operating Pressure
27
mpa
14.5
17.5
17.5
17.5
17.5
Battery
28
v/ah
12/90
12/90
12/90
12/90
12/90
Service Weight
23
lbs
6358
7370
8250
9858
10285
Transmission Type
29
Powershift /Automatic
Powershift /Automatic
Powershift /Automatic
Powershift /Automatic
Powershift /Automatic
Transmission Stage
30
fwd/rvs
1/1
1/1
1/1
1/1
1/1
