Function/Performance
RESPONSIVE STEERING
Equipped with a rugged steer axle for durability, and hydrostatic steering for simple and precise maneuverability, each EcoMaxx truck is designed to easily stand up to even the toughest jobs.
OPERATOR PRESENCE SYSTEM
Integrated into the ergonomic seat, the Operator Presence System locks out lift and travel functions and disengages the transmission should the operator leave the seat while the forklift is in use.
WIDE VIEW MAST
Intelligent design and effective chain / hose placement provides better forward visibility. With a clearer view of the forks, operators are more efficient, accurate, and safe in load handling.
EASILY ACCESSIBLE CONTROLS
INTEGRATED SAFETY FEATURE ECO-FD 18-35
INTEGRATED SAFETY FEATURE ECO-FD 40-120
RUGGED POWER TRAIN ECO-FD 18-35

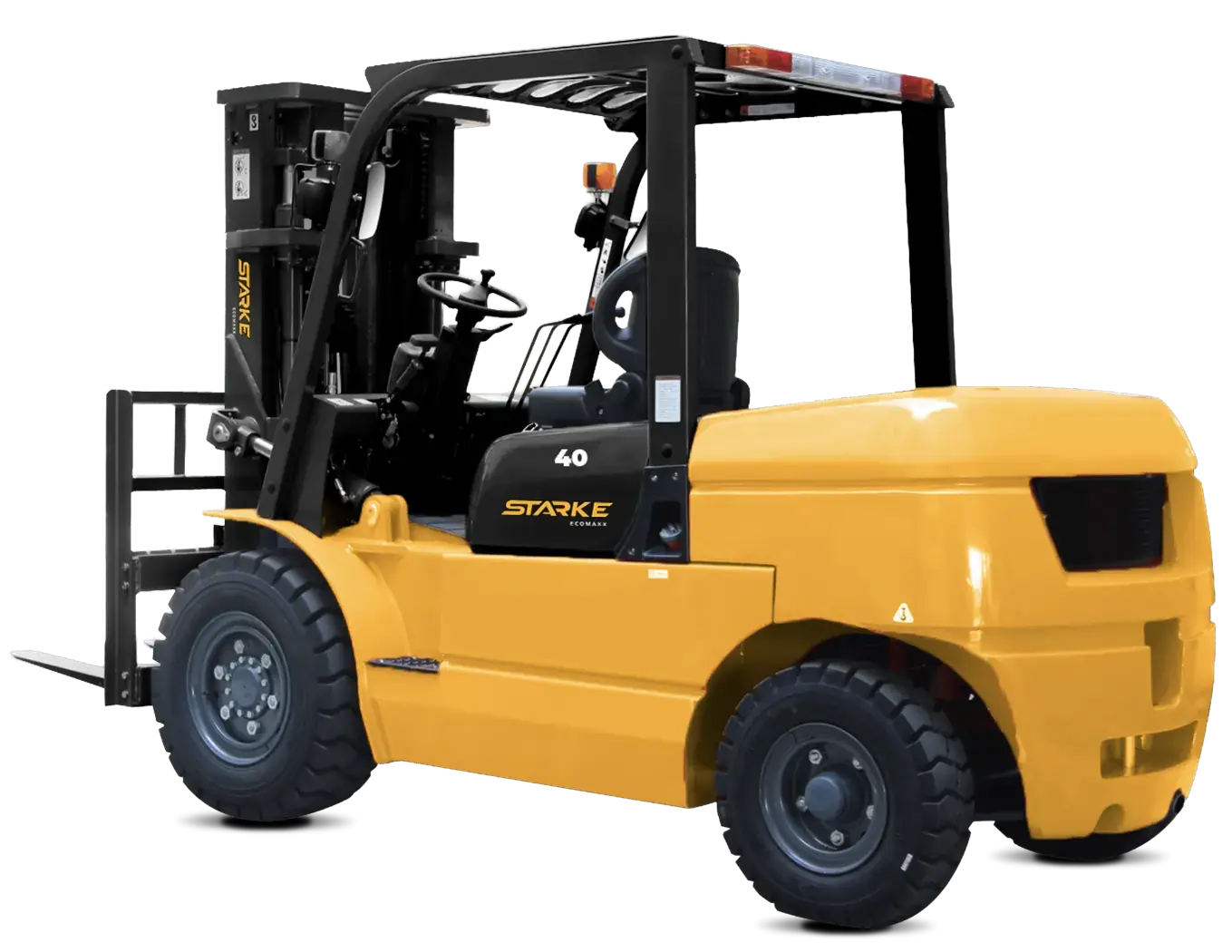

RUGGED POWER TRAIN ECO-FD 40-120
SPECIFICATIONS
MODEL
ECO-FD18
ECO-FD20
ECO-FD25
ECO-FD30
ECO-FD35
ECO-FD40
ECO-FD45
ECO-FD50S
ECO-FD50
ECO-FD60
ECO-FD70
ECO-FD80
ECO-FD100
ECO-FD120
Maximum Lift Capacity
3000 lbs
4000 lbs
5000 lbs
6000 lbs
7000 lbs
8000 lbs
9000 lbs
10000 lbs
11000 lbs
13200 lbs
15400 lbs
22000 lbs
26455 lbs
Length (without fork)
89.9 in
102.0 in
102.0 in
106.7 in
108.3 in
113.8 in
128.3 in
128.3 in
135.8 in
135.8 in
135.8 in
140.2 in
168.5 in
185 in
Width
42.7 in
45.3 in
45.3 in
48.2 in
48.2 in
55.5 in
57.5 in
57.5 in
79.1 in
79.1 in
79.1 in
79.1 in
85.4 in
86.6 in
Height (mast lowered)
78.5 in
81.4 in
81.4 in
83.3 in
86.4 in
89.4 in
89.4 in
111.4 in
111.4 in
111.4 in
111.4 in
121.3 in
111.4 in
121.3 in
Travel Speed (laden)
15
18.9
18.9
18.9
18.9
11.8
15.5
15.5
18.6
18.6
18.6
18.6
18.6
17.3
Travel Speed (unladen)
9.3 mph
11.7 mph
11.7 mph
11.7 mph
11.7 mph
11.8 mph
15.5 mph
15.5 mph
18.6 mph
18.6 mph
18.6 mph
18.6 mph
18.6 mph
17.3 mph
Lift Speed (laden)
17.3 in/s
19.3 in/s
19.3 in/s
17.3 in/s
16.1 in/s
12.6 in/s
15.7 in/s
15.0 in/s
19.7 in/s
19.7 in/s
19.7 in/s
18.1 in/s
10.6 in/s
11 in/s
Lift Speed (unladen)
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
Turning Radius
80.9 in
85.4 in
88.2 in
94.5 in
96.3 in
106.3 in
114.6 in
114.6 in
127.9 in
127.9 in
127.9 in
131.9 in
156.3 in
185 in
Engine Manufacturer
Mitsubishi
Mitsubishi
Mitsubishi
Mitsubishi
Mitsubishi
Cummins
Cummins
Cummins
Cummins
Cummins
Cummins
Cummins
Cummins
Cummins
Engine Model
D04EG
D04EG
D04EG
D04EG
D04EG
QSF2.8T4C49-74
QSF2.8T4C49-74
QSF2.8T4C49-74
Q5F3.8T4C74-130
Q5F3.8T4C74-130
Q5F3.8T4C74-130
Q5F3.8T4C74-130
Q5F3.8-C120T4
QSB4.5-C140T4
Battery
12/80 v/ah
12/90 v/ah
12/90 v/ah
12/90 v/ah
12/90 v/ah
12/80 x 2 v/ah
12/80 x 2 v/ah
12/80 x 2 v/ah
12/80 x 2 v/ah
12/80 x 2 v/ah
12/80 x 2 v/ah
12/80 x 2 v/ah
12/80 x 2 v/ah
12/80 x 2 v/ah
