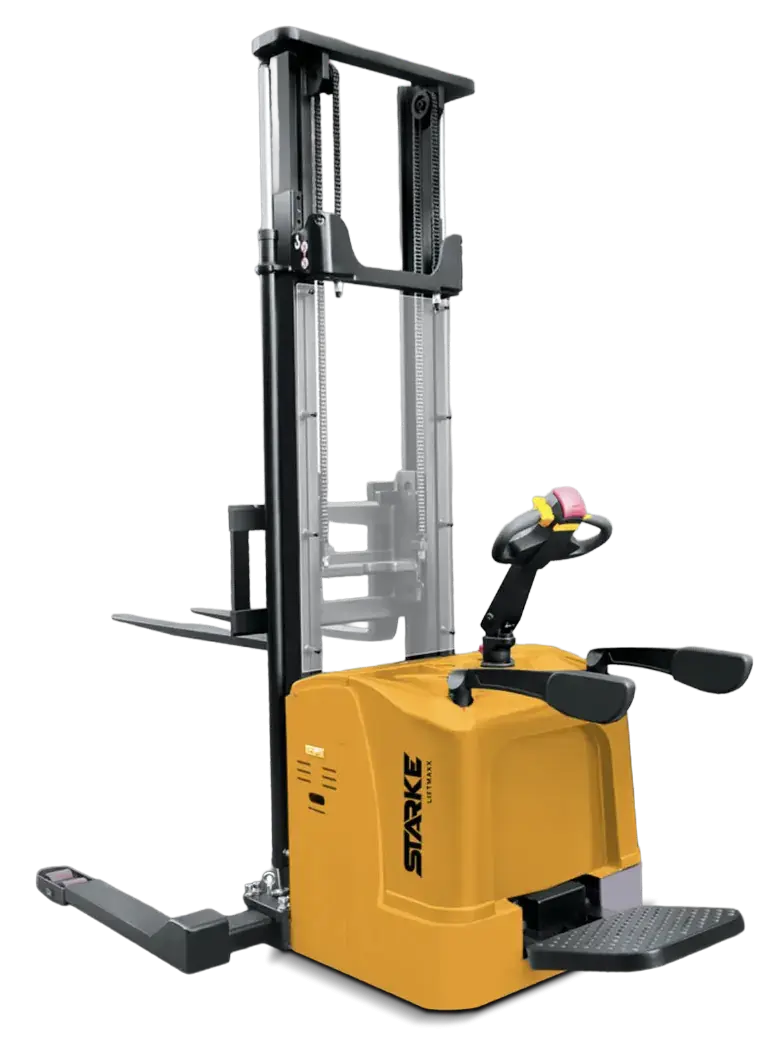

LIFTMAXX
ELECTRIC STRADDLE STACKER
AC POWERED ELECTRIC WALKIE
3500 LB CAPACITY
Model: ES35SDX / ES35STX / ES35XE
Function/Performance
FEATURES
- 3,500 lb. maximum lift capacity
- Lift heights from 177.1 - 220.5”
- Advanced AC control system with intelligent regenerative brake system.
- Includes our Continuous Stability System as a standard feature.
- Multi-purpose display with BDI, fault codes and other functions.
- Emergency reversing device/button.
- Intelligent automatic braking function that utilizes a regenerative braking system.
- Built-in pressure relief valve protects the trucks from hydrualic overloads.
- Emergency power disconnect button.
- Stepless speed control on a frei handle with left or right-handed operation
- Lifting limit switch to shuts off the unit’s pump motor once it reaches it maximum lifting height.
- A vertical drive motor provides easy maintenance access and a tight turning radius.
- AC motor includes design features that make it waterproof and dustproof
SPECIFICATIONS
MODEL
ES35SDX
ES35STX
ES35XE
Maximum Lift Capacity
3500 lbs
3500 lbs
3500 lbs
Length (with platform)
79.5 in
79.5 in
79.5 in
Width
46.1 - 61.4 in
46.1 - 61.4 in
33.4 in
Height (mast lowered)
71 - 97.6 in
71 - 97.6 in
68.3 - 94.8 in
Traveling Speed (laden)
4.3 mph
4.3 mph
4.4 mph
Traveling Speed (unladen)
4 mph
4 mph
4.2 mph
Lifting Speed (laden)
6.3 in/s
6.3 in/s
4.3 in/s
Lifting Speed (unladen)
9.4 in/s
9.4 in/s
6.3 in/s
Turning Radius
66.7 in
66.7 in
65.1 in
Engine Manufacturer
n/a
n/a
n/a
Engine Model
n/a
n/a
n/a
Battery
24/240 v/ah
24/240 v/ah
24/240 v/ah
