ECOMAXX
SERIES

INTERNAL COMBUSTION DIESEL

4 WHEEL ROUGH TERRAIN

4000-7000 LBS

FD20RT4S / FD25RT4S / FD30RT4S / FD30RT4 / FD35RT4

FIND A DEALER

ECO-FD30-35RT

Features

Specifications

Find a Dealer

Function/Performance

Asset 4

RESPONSIVE STEERING

Equipped with a rugged steer axle for durability, and hydrostatic steering for simple and precise maneuverability, each EcoMaxx truck is designed to easily stand up to even the toughest jobs.

Asset 6

EASE OF MAINTENANCE

Designed for durability and equipped with a straightforward oil and filter change system, EcoMaxx forklifts are built for simplified maintenance – making routine inspections and repairs more efficient.

Asset 5

OPERATOR PRESENCE SYSTEM

Integrated into the ergonomic seat, the Operator Presence System locks out lift and travel functions and disengages the transmission should the operator leave the seat while the forklift is in use.

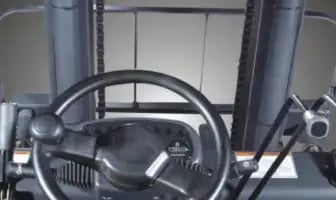

steering wheel red

WIDE VIEW MAST

Intelligent design and effective chain / hose placement provides better forward visibility. With a clearer view of the forks, operators are more efficient, accurate, and safe in load handling.

SPECIFICATIONS

MODEL
FD20RT4S
FD25RT4S
FD30RT4S
FD30RT4
FD35RT4
Maximum Lift Capacity
4000 lbs
5000 lbs
6000 lbs
6000 lbs
7000 lbs
Length (without fork)
120.4 in
120.4 in
120.4 in
120.4 in
120.4 in
Width
61.4 in
61.4 in
61.4 in
63.1 in
63.1 in
Height (mast lowered)
87.9 in
87.9 in
89.1 in
83.2 in
83.2 in
Travel Speed (laden)
13.7 mph
13.7 mph
13 mph
13.7 mph
13.7 mph
Travel Speed (unladen)
13 mph
13 mph
12.4 mph
13.7 mph
13.7 mph
Lifting (laden)
22 in/s
22 in/s
21 in/s
17.7 in/s
17.7 in/s
Lifting (unladen)
20.8 in/s
20.8 in/s
20 in/s
18.8 in/s
18.8 in/s
Turning Radius (outside)
125.9 in
108.2 in
108.2 in
125.9 in
125.9 in
Engine Manufacturer
Hyundai
Hyundai
Hyundai
Cummins
Cummins
Engine Model
DM02P
DM02P
DM02P
QSF2.8T4C65
QSF2.8T4C65
Battery
12/80 v/ah
12/80 v/ah
12/80 v/ah
12/90 v/ah
12/90 v/ah
