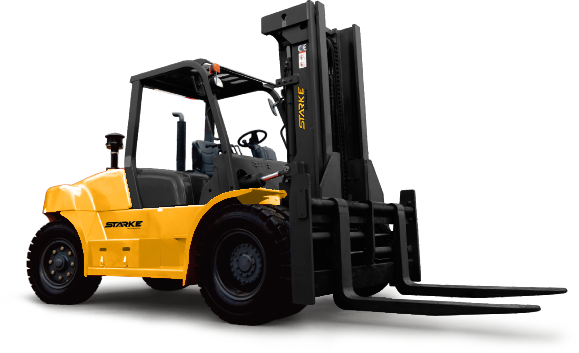

![fd120_Yellow_Black[36]](https://www.starkeforklift.com/hubfs/fd120_Yellow_Black%5B36%5D.png "fd120_Yellow_Black[36]")
Function/Performance
RESPONSIVE STEERING
Equipped with a rugged steer axle for durability, and hydrostatic steering for simple and precise maneuverability, each EcoMaxx truck is designed to easily stand up to even the toughest jobs.
OPERATOR PRESENCE SYSTEM
Integrated into the ergonomic seat, the Operator Presence System locks out lift and travel functions and disengages the transmission should the operator leave the seat while the forklift is in use.
WIDE VIEW MAST
Intelligent design and effective chain / hose placement provides better forward visibility. With a clearer view of the forks, operators are more efficient, accurate, and safe in load handling.
EASILY ACCESSIBLE CONTROLS
INTEGRATED SAFETY FEATURE
RUGGED POWER TRAIN
SPECIFICATIONS
MODEL
ECO-FD80
ECO-FD100
ECO-FD120
Maximum Lift Capacity
22000 lbs
26455 lbs
Length (without fork)
140.2 in
168.5 in
185 in
Width
79.1 in
85.4 in
86.6 in
Height (mast lowered)
121.3 in
111.4 in
121.3 in
Travel Speed (laden)
18.6
18.6
17.3
Travel Speed (unladen)
18.6 mph
18.6 mph
17.3 mph
Lift Speed (laden)
18.1 in/s
10.6 in/s
11 in/s
Lift Speed (unladen)
n/a
n/a
n/a
Turning Radius
131.9 in
156.3 in
185 in
Engine Manufacturer
Cummins
Cummins
Cummins
Engine Model
Q5F3.8T4C74-130
Q5F3.8-C120T4
QSB4.5-C140T4
Battery
12/80 x 2 v/ah
12/80 x 2 v/ah
12/80 x 2 v/ah
